| World most advanced Salmon Processing Equipments and processing line for
Salmon and other fish like. |
 Click for operation movie |
| Automatic Header |
|
Machinery Specifications |
 |
|
| Machinery Dimensions |
Length |
Width |
Height |
| 2484mm |
1290mm |
1800mm |
| Electric Consumption |
3 Phase, 0.4kW |
| Air Consumption |
Approx. 150 liters/min. |
| Water Consumption |
Approx. 20 liters/min. |
| Capacity |
25 - 30pcs./min. |
|
 |
|

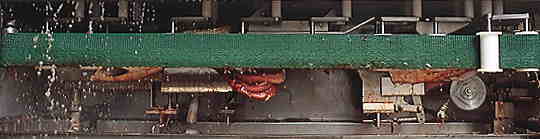

| Automatic Gutter |
|
Machinery Specifications |
 |
|
| Machinery Dimensions |
Length |
Width |
Height |
| 3463mm |
1120mm |
1670mm |
| Electric Consumption |
3Phase, 6.65kW |
| Capacity |
25 - 30pcs./min. |
| Suitable Fish Weight |
Round 2kg - 6kg/pc |
|
 |
|
| Automatic Fin cutter |
|
Machinery Specifications |
 |
|
| Machinery Dimensions |
Length |
Width |
Height |
| 3550mm |
950mm |
1704mm |
| Electric Consumption |
3Phase, 4.7kW |
| Water Consumption |
Approx. 40 liters/min. |
| Air Cunsumption |
Equivalant of 2.2KW |
| Max. Capacity |
20pcs.min. |
| Suitable Fish Weight |
Round 2 - 5kg/ps |
|
 |
|
| Band Filleting Machine |
|
Machinery Specifications |
 |
|
| Machinery Dimensions |
Length |
Width |
Height |
| 1400mm |
1200mm |
1866mm |
| Electric Consumption |
3Phase, 4.6kW |
| Air Consumption |
Equivalant of 1.5kW |
| Water Consumption |
Equivalant of tap water |
| Suitable Fish Weight |
Round 2 - 6kg/pc |
|
 |
|
| Skinner |
|
Machinery Specifications |
 |
|
| Machinery Dimensions |
Length |
Width |
Height |
| 1244mm |
597mm |
1040mm |
| Electric Consumption |
3Phase 2.5kW |
| Water Consumption |
Approx. 30 liters/min. |
|
| Red Snapper |
|
Flat Fish |
|
 |
|
 |
 |
|
|
|
|
|
| Automatic Filleting Jr. |
|
Machinery Dimensions |
 |
|
| Machinery Dimensions |
Length |
Width |
Height |
| 1966mm |
1056mm |
1612mm |
| Max. Raw Material Fish |
(L)600mm x (H)50mm |
| Electric Consumption |
3Phase, 3kW |
| Air Consumption |
Equivalant of 3kW |
| Capacity |
3100 pcs./hour |
|
 |
|
|
|
|
|
Automatic 3D Robot Filleting
Super Professional |
|
Machinery Specifications |
 |
|
| Machinery Dimensions |
Length |
Width |
height |
| 3688mm |
1600mm |
1821mm |
| Max Raw Material Fish |
(L)400mm x (W)200mm |
| Electric Consumption |
3Phase, 8kW |
| Water Consumption |
Equivalant of Tap Water |
| Air Consumption |
Equivalant of 1.5kW |
| Robot |
6 Axis Multi-jointed Robot |
|
 |
|
|
|
|
|
 |
